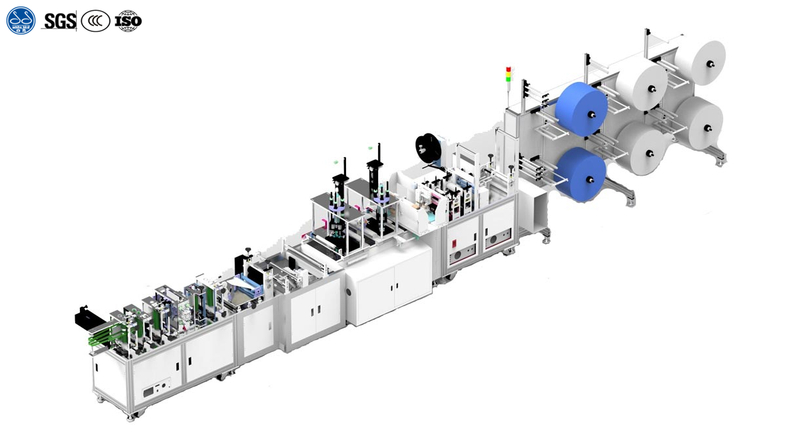

TFD-1795-2 is a fully automatic mask making machine. This machine integrates 1 set face mask bank machine with 2 sets of ear-loop machine by the mask distribution system. It adopts PLC, touch screen control, single-phase motor for main conveyor belt, stepping motor turning, precise transmission, stable in control and easy to adjust the speed. From material feeding to welding the ear-loop, the production line realizes the full automatic production of face masks.
Mash Making Machine Features
1. Compact in size and save space, beautiful sturdy and rustproof with the aluminum alloy structure.
2. PLC control, servo driving and highly automation.
3. High - precision and high - sensitive electric eye tracking system, to avoid errors and reduce waste.
Working Video of Mask Making Machine ( Video Installment Guidance Provided )
Mask Making Machine Size
This machine applies to 2 ply or multi-plies (no sealing side) Outside Earloop Face( Customized is available) .

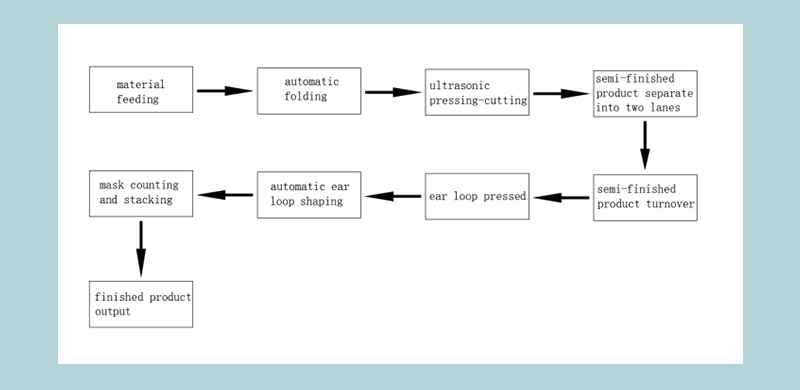

Process Flow Chart of 1+2 Fully Automatic Mask Making Machine
Mask Making Machine Detail
Specific Notes:
1. Face wearing include: 2-ply, 3-ply, 4-ply Non-Woven.
2. 2-ply face wearing material: non-woven fabric, nose bridge bar, ear loop.
3. 3-ply face wearing marerial: non-woven fabric, nose wire, ear loop, filter foam.
4. Activated carbon wearing material: non-woven fabric, nose bridge bar, ear loop, filter foam, activated carbon cloth.

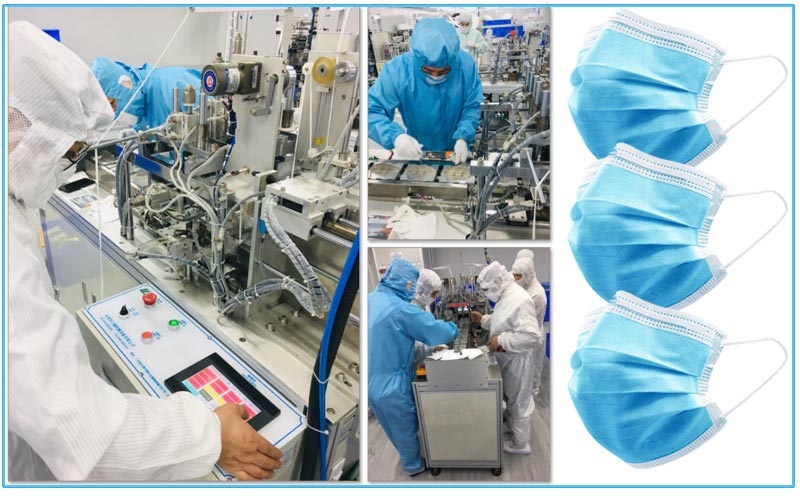

Working of Mask Making Machine
Suggested Fabric Size for Body
1. PPSB-200*36g
2. melt-blown-195mm*28g
3. PPSB-195*18g
4. Suggested nose wire: diameter 2.5mm
Henan Swan Vehicle CO., LTD is a joint company of Henan Huanghe Whirlwind CO.,LTD, which specializes in the production of masking making machines. With CE certificate, our mask making machines are free to be exported to most of worldwide countries, and it has been exported to Germany, Turkey, Armenia and other countries. Our factory works are in daily working and production, which ensures timely delivery time. Besides that, our mask making machine can be delivered within 3 weeks, which can be very helpful under such worldwide circumstances, and the buyers can also put into mask production as soon as possible. Video installment guidance will be provided to ensure smooth startup. Welcome to contact us for FREE QUOTE at any time! We will reply as soon as possible.
TFD-1795-2 is a fully automatic mask making machine. This machine integrates 1 set face mask bank machine with 2 sets of ear-loop machine by the mask distribution system. It adopts PLC, touch screen control, single-phase motor for main conveyor belt, stepping motor turning, precise transmission, stable in control and easy to adjust the speed. From material feeding to welding the ear-loop, the production line realizes the full automatic production of face masks.
Mash Making Machine Features
1. Compact in size and save space, beautiful sturdy and rustproof with the aluminum alloy structure.
2. PLC control, servo driving and highly automation.
3. High - precision and high - sensitive electric eye tracking system, to avoid errors and reduce waste.
Working Video of Mask Making Machine ( Video Installment Guidance Provided )
Mask Making Machine Size
This machine applies to 2 ply or multi-plies (no sealing side) Outside Earloop Face( Customized is available) .
Process Flow Chart of 1+2 Fully Automatic Mask Making Machine
Mask Making Machine Detail
Specific Notes:
1. Face wearing include: 2-ply, 3-ply, 4-ply Non-Woven.
2. 2-ply face wearing material: non-woven fabric, nose bridge bar, ear loop.
3. 3-ply face wearing marerial: non-woven fabric, nose wire, ear loop, filter foam.
4. Activated carbon wearing material: non-woven fabric, nose bridge bar, ear loop, filter foam, activated carbon cloth.
Working of Mask Making Machine
Suggested Fabric Size for Body
1. PPSB-200*36g
2. melt-blown-195mm*28g
3. PPSB-195*18g
4. Suggested nose wire: diameter 2.5mm
Henan Swan Vehicle CO., LTD is a joint company of Henan Huanghe Whirlwind CO.,LTD, which specializes in the production of masking making machines. With CE certificate, our mask making machines are free to be exported to most of worldwide countries, and it has been exported to Germany, Turkey, Armenia and other countries. Our factory works are in daily working and production, which ensures timely delivery time. Besides that, our mask making machine can be delivered within 3 weeks, which can be very helpful under such worldwide circumstances, and the buyers can also put into mask production as soon as possible. Video installment guidance will be provided to ensure smooth startup. Welcome to contact us for FREE QUOTE at any time! We will reply as soon as possible.
Technical Parameter | |
Machine name | Fully Automatic Earloop Face Mask Making Machine |
Model | TFD-1795-2 |
Machine size | L6842mm*W3554mm*H2000mm |
Production Speed | 80-120pcs/min |
Power supply | 220V-50/60Hz |
Pressure | 0.6Mpa/0.8Mpa |
Motor power | 10KW |
Overall weight | 1500KG |
Mask Specification | 175mm*95mm |
Control mode | PLC |
Note: The mask size is fixed |
Technical Parameter | |
Machine name | Fully Automatic Earloop Face Mask Making Machine |
Model | TFD-1795-2 |
Machine size | L6842mm*W3554mm*H2000mm |
Production Speed | 80-120pcs/min |
Power supply | 220V-50/60Hz |
Pressure | 0.6Mpa/0.8Mpa |
Motor power | 10KW |
Overall weight | 1500KG |
Mask Specification | 175mm*95mm |
Control mode | PLC |
Note: The mask size is fixed |
