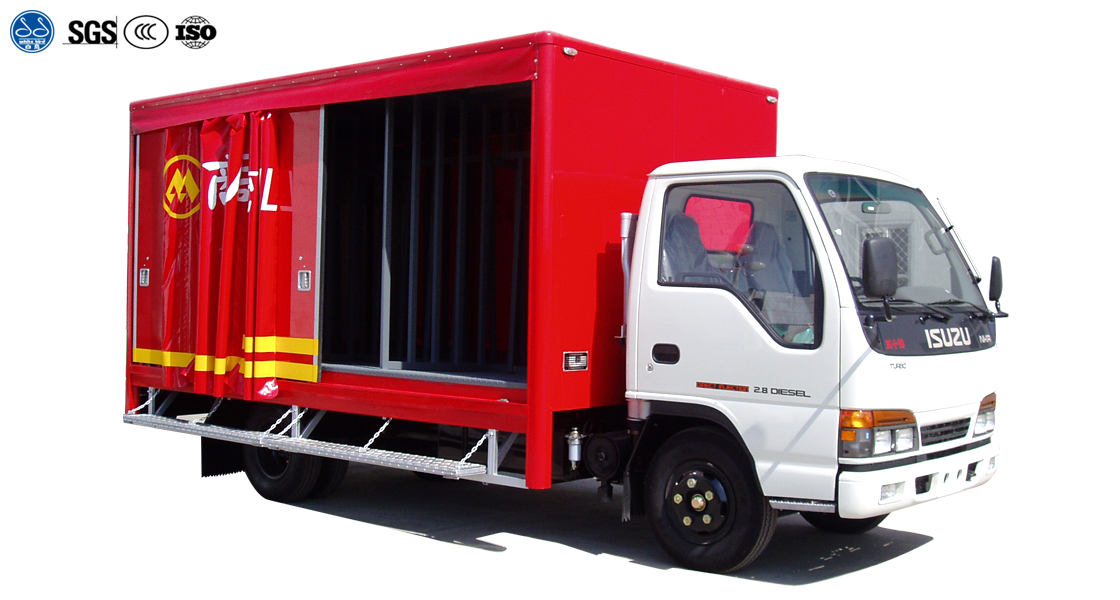

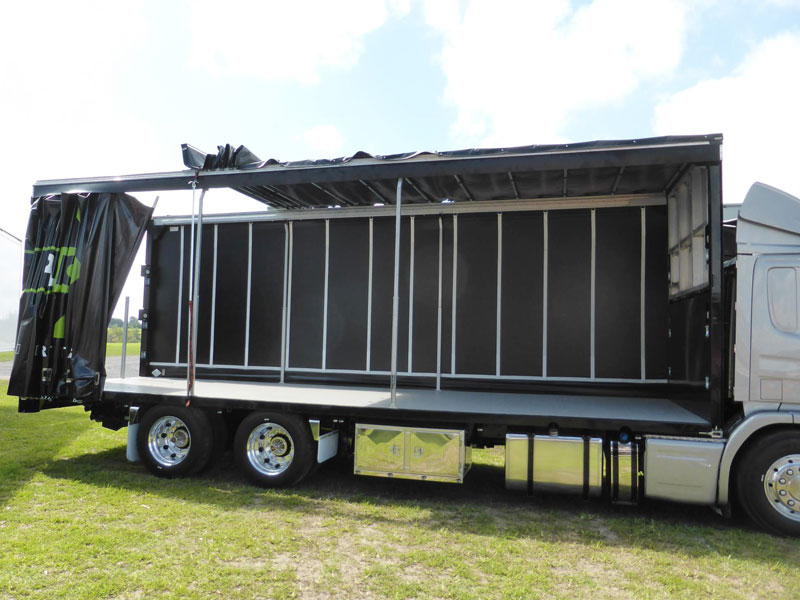

Curtain side truck is redesigned new type special vehicle, which is suitable for the transportation of bottled beverages, liquid dairy products, bottled beer, etc. Generally speaking, curtain side truck has high working efficiency by using forklifts to load and unload. The truck is covered by curtain on both sides of the truck, which is the reason that it is named as curtainside truck.
The chassis of our curtain side van trucks adopt famous and high performance brand, which has compact structure, easy operation and maintenance, such as domestic Dongfeng, Japanese Isuzu and others. The chassis of the truck can be customized with customer' s reference and budget. Customers may also select the curtainside box trucks for sale with their transportation capacity, special usage and other requirements. Swan will try our best to satisfy your demand and offer you the the best truck.
Henan SWAN Vehicle Co., LTD has over 8o years manufacturing experience, which has abundant experience in the production of special vehicles, such as stage truck, exhibition truck, led advertising truck, wing van truck, mobile shop truck and curtain side truck. With certificates assurance, it it wise to purchase our truck and the service that we offers will be totally satisfying and considerate. So, why not contact us for FREE INQUIRY?
Curtain side truck is redesigned new type special vehicle, which is suitable for the transportation of bottled beverages, liquid dairy products, bottled beer, etc. Generally speaking, curtain side truck has high working efficiency by using forklifts to load and unload. The truck is covered by curtain on both sides of the truck, which is the reason that it is named as curtainside truck.
The chassis of our curtain side van trucks adopt famous and high performance brand, which has compact structure, easy operation and maintenance, such as domestic Dongfeng, Japanese Isuzu and others. The chassis of the truck can be customized with customer' s reference and budget. Customers may also select the curtainside box trucks for sale with their transportation capacity, special usage and other requirements. Swan will try our best to satisfy your demand and offer you the the best truck.
Henan SWAN Vehicle Co., LTD has over 8o years manufacturing experience, which has abundant experience in the production of special vehicles, such as stage truck, exhibition truck, led advertising truck, wing van truck, mobile shop truck and curtain side truck. With certificates assurance, it it wise to purchase our truck and the service that we offers will be totally satisfying and considerate. So, why not contact us for FREE INQUIRY?
Commodity: | Curtain Covered Side Vehicle | |||||
Public Announcement Batch of Vehicle: | 300 | Gross Weight: | 25000kg | |||
Rated Weight: | 1,297,012,905 | Curb Weight: | 11900kg | |||
Max. Speed: | 90(km/h) | Approach/Departure Angle(°): | 30/10 | |||
Front/Rear Suspension: | 1500/3200 | Passenger: | 2,3 | |||
Number of Springs: | 8/8/9+9,3/3/9+3,9/9/9+3,9/9/10+3,9/9/9+9,9/9/10+9,3/3/4+3,3/3/10+3, | Fuel Type: | Diesel | |||
Number of Tyre: | 8 | Type of Tyre: | 11.00-20 18PR,11.00R20 18PR,295/80R22.5 18PR, | |||
Front Tread: | 1980/1980,2040/2040 | Rear Tread: | 1860 | |||
Axle: | 3 | Wheelbase: | 1850+5450,1950+5350 | |||
Overall Dimension(mm): | 12000*2550*3990(L*W*H) | |||||
Model of Chassis: | DFH1250AXV/-/-/- | |||||
Dimension of Box Body(mm): | 9330*2420*2450(L*W*H) | |||||
Manufacturer of Engine: | Model of Engine: | Displacement(ml): | Power(kw): | |||
Dongfeng Cummins Engine Co., Ltd | ISD230 50 | 6700 | 169 | |||
Dongfeng Cummins Engine Co., Ltd | ISD245 50 | 6700 | 180 | |||
Dongfeng Cummins Engine Co., Ltd | ISD270 50 | 6700 | 198 |
Commodity: | Curtain Covered Side Vehicle | |||||
Public Announcement Batch of Vehicle: | 300 | Gross Weight: | 25000kg | |||
Rated Weight: | 1,297,012,905 | Curb Weight: | 11900kg | |||
Max. Speed: | 90(km/h) | Approach/Departure Angle(°): | 30/10 | |||
Front/Rear Suspension: | 1500/3200 | Passenger: | 2,3 | |||
Number of Springs: | 8/8/9+9,3/3/9+3,9/9/9+3,9/9/10+3,9/9/9+9,9/9/10+9,3/3/4+3,3/3/10+3, | Fuel Type: | Diesel | |||
Number of Tyre: | 8 | Type of Tyre: | 11.00-20 18PR,11.00R20 18PR,295/80R22.5 18PR, | |||
Front Tread: | 1980/1980,2040/2040 | Rear Tread: | 1860 | |||
Axle: | 3 | Wheelbase: | 1850+5450,1950+5350 | |||
Overall Dimension(mm): | 12000*2550*3990(L*W*H) | |||||
Model of Chassis: | DFH1250AXV/-/-/- | |||||
Dimension of Box Body(mm): | 9330*2420*2450(L*W*H) | |||||
Manufacturer of Engine: | Model of Engine: | Displacement(ml): | Power(kw): | |||
Dongfeng Cummins Engine Co., Ltd | ISD230 50 | 6700 | 169 | |||
Dongfeng Cummins Engine Co., Ltd | ISD245 50 | 6700 | 180 | |||
Dongfeng Cummins Engine Co., Ltd | ISD270 50 | 6700 | 198 |
