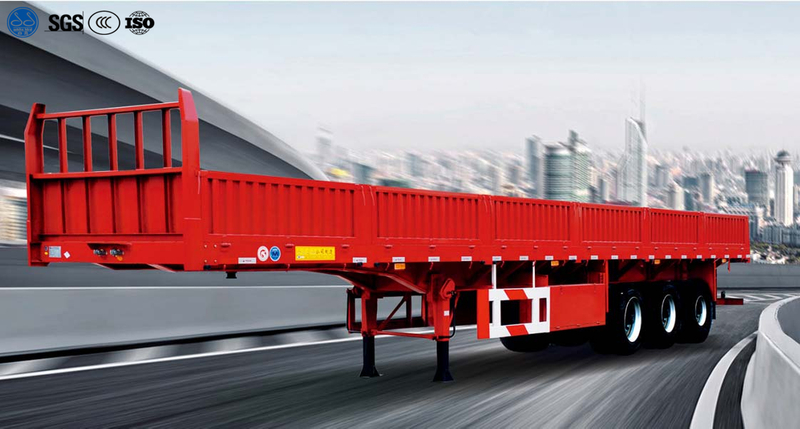

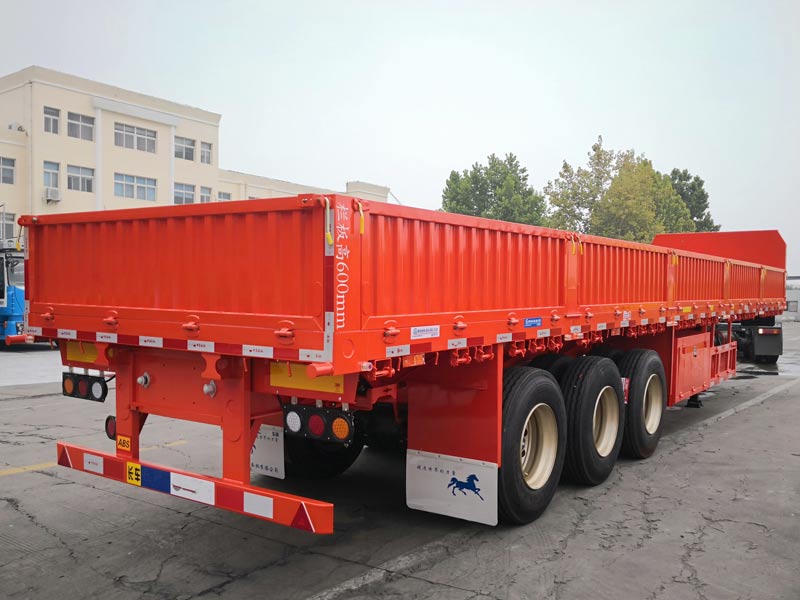

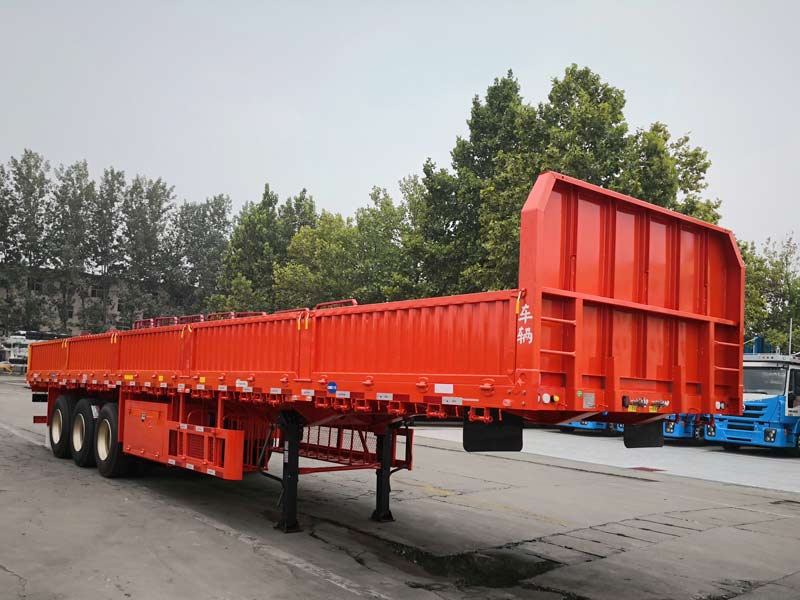

Henan Swan dropside trailers for sale have wide application, which are well welcomed with top quality, low price, good performance and long service life. Swan dropside trailer has good reputation at home and abroad.
Features and Advantages of our Dropside Trailer
Novel design: Super-light dropside semitrailer of Henan Swan is a new light vehicle, which makes several innovations on the basis of full data analysis on transportation environments in various places, by referring to foreign and domestic advanced design concepts and by using FEA (finite element analysis).
High strength steel: Web plate and key position material uses low alloy high strength steel with domestic advanced technical standard.
-Small dead weight: It uses convex-concave through-going beam structure, reduces weight at several positions under the precondition of ensuring structural strength, and has small dead weight.
Strong loading capacity: By using high strength steel and structural innovation, it keeps same loading capacity while reducing dead weight. It is unique in reducing oil consumption and tire wearing aspects.
Henan Swan Vehicle Co., Ltd is the global leading logistic and energy equipment supplier, which integrates design, research, development, production and sales of special vehicles. Its products include 5 series and 140 types of dropside semitrailer, cargo semitrailer, container transporting semitrailer, van semitrailer and special semitrailer, are sold all over China and exported to international markets. Henan Swan offers many types of dropside trailers for sale, and wecan also customize semi trailers with personal requirement. Contact us for free quotation at any time if interested!
Henan Swan dropside trailers for sale have wide application, which are well welcomed with top quality, low price, good performance and long service life. Swan dropside trailer has good reputation at home and abroad.
Features and Advantages of our Dropside Trailer
Novel design: Super-light dropside semitrailer of Henan Swan is a new light vehicle, which makes several innovations on the basis of full data analysis on transportation environments in various places, by referring to foreign and domestic advanced design concepts and by using FEA (finite element analysis).
High strength steel: Web plate and key position material uses low alloy high strength steel with domestic advanced technical standard.
-Small dead weight: It uses convex-concave through-going beam structure, reduces weight at several positions under the precondition of ensuring structural strength, and has small dead weight.
Strong loading capacity: By using high strength steel and structural innovation, it keeps same loading capacity while reducing dead weight. It is unique in reducing oil consumption and tire wearing aspects.
Henan Swan Vehicle Co., Ltd is the global leading logistic and energy equipment supplier, which integrates design, research, development, production and sales of special vehicles. Its products include 5 series and 140 types of dropside semitrailer, cargo semitrailer, container transporting semitrailer, van semitrailer and special semitrailer, are sold all over China and exported to international markets. Henan Swan offers many types of dropside trailers for sale, and wecan also customize semi trailers with personal requirement. Contact us for free quotation at any time if interested!
40FT Flatbed Semi-trailer With Tri-axle
Terms & Conditions: | Overall Dimension: | 13000(side to side)*2500(side to side) |
Delivery: | 25 days after down payment received | |
Payment: | Down payment 30% by T/T,Balance 70% by T/T before EXW. | |
Warranty: | 12 Months | |
Frame & Structure | Main beam: | Material Q345. Fabricated “H” beam height 500mm, Top flange thickness 14mm Middle web thickness8mm, Bottom flange thickness 16mm |
Side beam: | 16# channel | |
Cross beam: | 10# channel | |
Bottom: | 3.0 chechered | |
Foundation mat beam: | 6.3# channel / 6sets | |
Kingpin: | Standard 50/90#, bolted in type | |
Welding standard: | All welding are to be done by qualified welder per applicable national standard | |
Side wall : | / | |
Twist: | 12 pieces | |
Paint: | Electrophoretic paint KTL+KTY | |
Colour: | According to customer requirements | |
Running gear: | Suspension: | JMCG mechanical suspention,10pcs |
Axle: | FUWA 3pcsx13T, China | |
Brake chamber: | 4 units T30/30 spring brake chambers on two axles | |
Tire: | Linglong 12R22.5/12pieces | |
Rim: | 9.0*22.5/12pieces | |
Landing gear: | JMCG 28T two speed telescopic manual landing gear | |
Electrical System: | Voltage: | 24 Volt ,7 way socket standard, China, LED |
Rear lamp: | Three combination round lamp | |
Accessories: | Mud guard: | Steel mud guard |
Hook | steel | |
Tool Box: | 1 set |
40FT Flatbed Semi-trailer With Tri-axle
Terms & Conditions: | Overall Dimension: | 13000(side to side)*2500(side to side) |
Delivery: | 25 days after down payment received | |
Payment: | Down payment 30% by T/T,Balance 70% by T/T before EXW. | |
Warranty: | 12 Months | |
Frame & Structure | Main beam: | Material Q345. Fabricated “H” beam height 500mm, Top flange thickness 14mm Middle web thickness8mm, Bottom flange thickness 16mm |
Side beam: | 16# channel | |
Cross beam: | 10# channel | |
Bottom: | 3.0 chechered | |
Foundation mat beam: | 6.3# channel / 6sets | |
Kingpin: | Standard 50/90#, bolted in type | |
Welding standard: | All welding are to be done by qualified welder per applicable national standard | |
Side wall : | / | |
Twist: | 12 pieces | |
Paint: | Electrophoretic paint KTL+KTY | |
Colour: | According to customer requirements | |
Running gear: | Suspension: | JMCG mechanical suspention,10pcs |
Axle: | FUWA 3pcsx13T, China | |
Brake chamber: | 4 units T30/30 spring brake chambers on two axles | |
Tire: | Linglong 12R22.5/12pieces | |
Rim: | 9.0*22.5/12pieces | |
Landing gear: | JMCG 28T two speed telescopic manual landing gear | |
Electrical System: | Voltage: | 24 Volt ,7 way socket standard, China, LED |
Rear lamp: | Three combination round lamp | |
Accessories: | Mud guard: | Steel mud guard |
Hook | steel | |
Tool Box: | 1 set |
