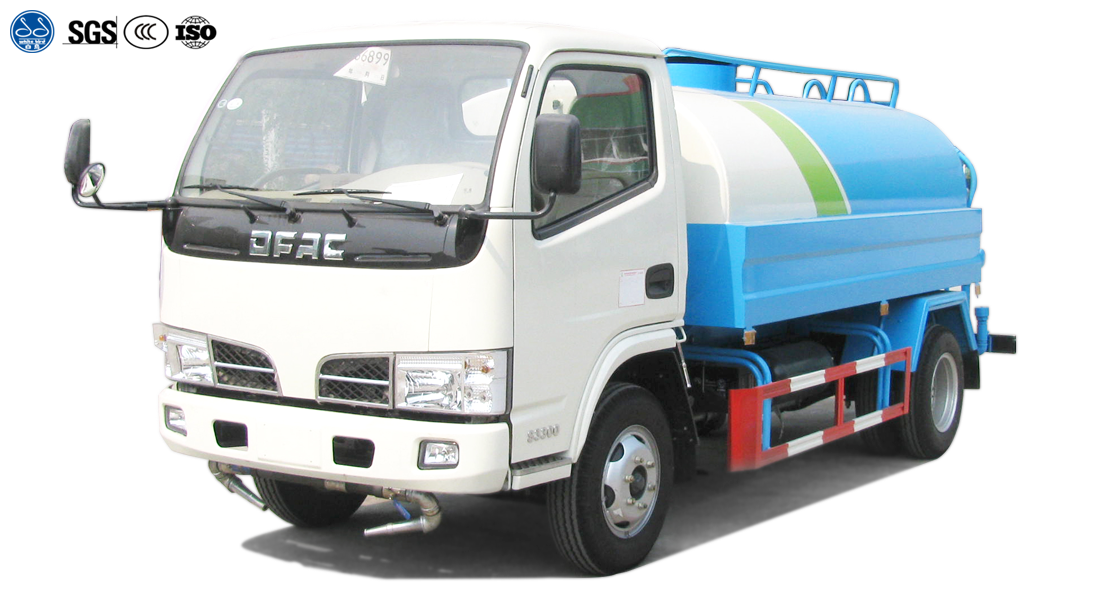

Sprinkler Truck

Share to:
Availability:

Spray in the front and sprinkle at the back, a side sprinkler is equipped.

The tank body is equipped with a working platform. The platform is equipped with a green sprinkler cannon.

The cannon can rotate 360° in all directions, and can be continuously adjusted into straight flush, heavy rain and moderate rain,light rain, drizzle,installed with safety guardrail, equipped with special high-power sprinkler pump, pump can suck and drain water, suction range ≥7m, sprinkling width ≥15m, sprinkler cannon range ≥30m, with fire-fighting interface and self-flow valve, The tank body can be optionally equipped with anti-corrosion, and it can be used for drought-resistant water transportation and fire fighting in an emergency.



Overall   Dimension



9600×2500×3300(mm) 

Gross Weight

25000(Kg) 



Curb   Weight



11005(Kg) 

Payload

13800,13865(Kg) 



Passenger



3,2(Person)

ABS:

Yes



Approach/Departure   Angle



16/20(°)

Front/Rear Suspension

1500/2425,1500/2400(mm) 



Axle   Load



7000/18000(Double   Axle)

Wheelbase

4325+1350,4300+1400(mm) 

Axle



3



Max Speed

102(km/h)



Steering



Steering   Wheel

No. Of Springs

4/-,4/12,10/-,10/12

No. Of   Tyre



10



Size of Tyre

11.00-20,11.00R20   16PR,12.00-20 16PR



Front   Tread



2022,2041(mm)

Rear Tread

1830/1830(mm) 



Parameters of Engine





Engine



Manufacturer

Displacement(ml)

Power(kw)

D10.27-40
  D10.30-40
  D10.28-40
  D10.31-40

CNHTC
  CNHTC
  CNHTC
  CNHTC

9726
  9726
  9726
  9726

198
  221
  206
  228



Parameters   of Fuel







Fuel



Diesel

Emission Standard:

GB17691-2005 National,GB3847-2005



Others





Transport medium: water, density: 1000 kg   / m3, the effective volume of the tank is 14.49 m³. The outer dimension of the tank (L*W*H)   (mm): 6000 × 2300 × 1550. The appearances of local structures   are allowed to change, The color of the vehicle is optional, and the position   of the text can be changed. The side protection material is Q235 steel, and   the connection method is the connection bracket fixed on the beam of the   frame. The rear protection material is Q235 steel. Connection method: welded   to the rear of vehicle by the structural connections, rear guard section size   (W*H):60 × 120 (mm), rear guard   off the ground height: 460 (mm).A travel recorder with satellite positioning   function is installed. ABS system is with the chassis, model is   4460046300,the manufacturer is WABCO Automotive Control Systems (China) Co.,   Ltd.





Retro-Reflective   Marking





Manufacturer



Changzhou Hua R Sheng Reflective Material   Co.,Ltd.

Brand

Tong Ming



Model



TM1200-1
